Open Hive Arduino Yún gateway#


Please continue reading this document on our documentation space, all inline links will be working there.


This firmware runs on the Open Hive RFM69 Arduino Yún, a receiver node using radio link communication. Telemetry data is received from the Open Hive RFM69 sensor node, decoded from CSV and stored to a SD card. The most recent version is available at rfm69-gateway-sdcard.ino.

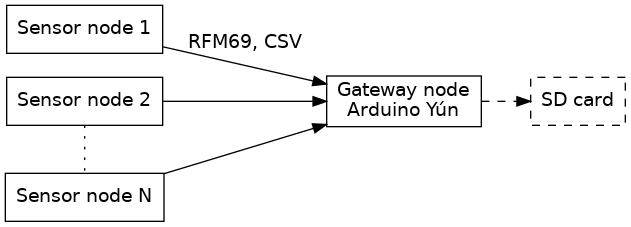

// Synopsis of Open Hive RFM69 sensor node
digraph open_hive_rfm69_sensor_firmware_synopsis {

    // Options

    // Style
    //graph [splines=ortho];
    node [pin=true, shape="box", fontname="Verdana"];
    edge [fontname="Verdana"];

    // Graph nodes represent hardware node units
    "sensor-1"      [label="Sensor node 1"];
    "sensor-2"      [label="Sensor node 2"];
    "sensor-N"      [label="Sensor node N"];
    "gateway"       [label="Gateway node\nArduino Yún"];
    "sd"            [label="SD card", style=dashed];

    // Graph edges represent radio families and
    // protocols spoken between node units.
    "sensor-1"      -> "gateway"        [label="RFM69, CSV"];
    "sensor-2"      -> "gateway";
    "sensor-N"      -> "gateway";
    "gateway"       -> "sd"             [style=dashed];

    // Draw a dotted line between sensor-2
    // and sensor-N, but retain node positions.
    "sensor-2"      -> "sensor-N"       [dir=none, style=dotted];
    {rank=same; "sensor-1"; "sensor-2"; "sensor-N" };

Open Hive RFM69 Arduino Yún


Build on your workstation#

# Acquire source code repository
git clone

# Select this firmware
cd arduino/openhive/rfm69-gateway-sdcard

# Build firmware
make build

# Upload to MCU
make upload


Please inspect the platformio.ini file, and adjust it to match your setup.
